Automation of coke-oven machines (positioning)

2021: JSC Yuzhcoke (Ukraine), Coke Shop:

Automation of the existing coke-oven machines complete with additional equipment of the monitoring system that does not interfere with their operation and does not affect them.
The system is based on the RTK GNSS precise positioning technology that ensures unprecedented positioning accuracy of coke-oven machines ± 20 mm + 1 ppm in plane.

Thanks to that, the system continuously controls the position of all mechanisms and automatically detects their location near chambers. The system is based on Siemens S7 1200 PLC. Such approach makes it possible to further develop the system both in terms of the monitoring signal expansion and the lockout and equipment control systems.

System advantages

Technology / quality compliance:

• Control of operations sequence
• Control of current loads while carrying out operations

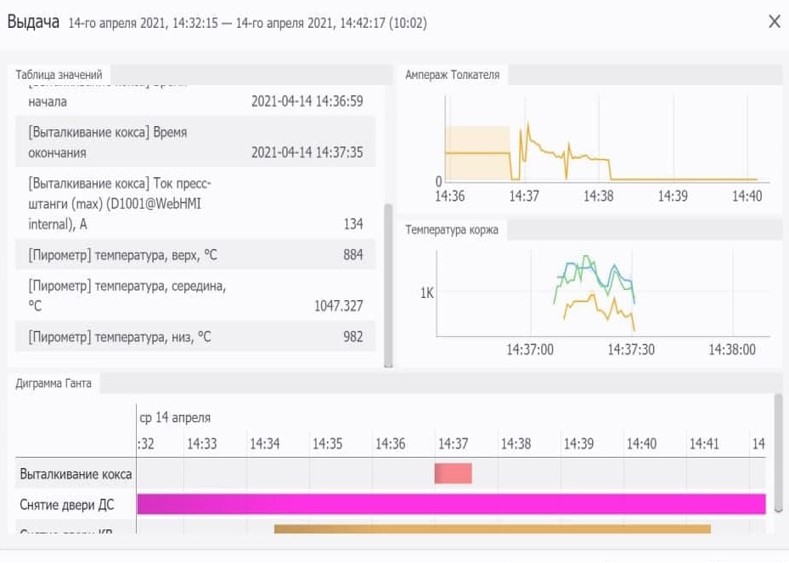

• Temperature measurement along the coke cake length during pushing
• Prevention of “technical” sticking
• Control of the current load value while pushing cake and levelling blend
• Control of time, current, and a change in gas flow direction.

Production:

• Control of actual performance – production cycle
• Control of the coke-oven machine position
• Control of the current load value while pushing cake and levelling blend
• Control of the oven pushing schedule
• Control of charging into coking chambers

Engineering:

• Control of current loads while carrying out operations by the units of coke oven machines
• Control of the coke-oven machine position
• Investigation of situation in case of equipment failure / downtime in aprompt manner
• Monitoring of actions taken by the coke-oven machine operators

Health and safety:

• Control of the coke-oven machine position
• Monitoring of actions taken by coke-oven machine operators
• Monitoring of actions taken by machine operations involved in one cycle
• Control of adherence to instructions
• Staff training tool
